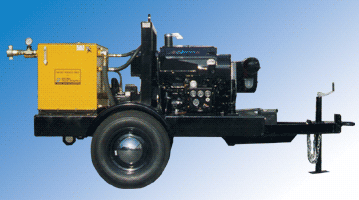

Hydra-Tech HT100DCV Diesel Driven Hydraulic Power Unit

Hydra-Tech HT100DCV Diesel Driven Hydraulic Power Unit

The Hydra-Tech HT100DCV 100 HP unit features a turbocharged Deutz air cooled diesel and pressure compensated hydraulic pump for enhanced performance when driving our submersible pumps or other hydraulic equipment requiring flows to 53 GPM.

Mid-Range 100 HP Diesel Driven Hydraulic Power Unit. Powered By A Deutz 100 HP Air-Cooled Engine. Features A Pressure Compensated Variable Volume Piston Hydraulic Pump.

Power:

Deutz 100 HP Liquid-Cooled Diesel

Hydraulic Pump:

Pressure Compensated Piston Type

Maximum Flow:

53 GPM (201 LPM)

Maximum Pressure:

2500 PSI (170 Bar)

Weight:

2590Lbs. (1173 Kg)

Hose Ports:

1 1/4 Inch NPT

Fuel Capacity:
53 US Gal. (200 L)

HT100DCV Specifications
