Hydra-Tech HT150DD/DV Diesel Driven Power Unit

Hydra-Tech HT150DD/DV Diesel Driven Power Unit

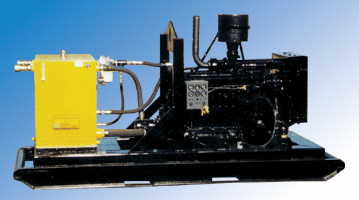

The Hydra-Tech HT150DD/DV 150 horsepower hydraulic power unit features a Deutz liquid cooled diesel engine, fixed or variable displacement hydraulic pump, engine mounted hydraulic oil cooler and built-in fuel tank. It is designed to power our larger submersible pumps and other hydraulic equipment requiring flows up to 70 GPM.

Designed To Power Our Larger Sized Pumps, The HT150DD or DV Features A Deutz 150 HP Liquid-Cooled Diesel, Either A Fixed Displacement (DD) or Pressure Compensated Piston (DV) Hydraulic Pump, Engine Mounted Hydraulic Oil Cooler and Built-In Fuel Tank. To Operate Pumps or Equipment Requiring Up to 70 GPM (265 L) Hydraulic Flow.

Power:

Deutz 150 HP Liquid-Cooled Diesel

Hydraulic Pump:

HT150DD: Gear Type HT150DV: Piston Type

Maximum Flow:

70 GPM (265 LPM)

Maximum Pressure:

2500 PSI (170 Bar)

Weight:

4100 Lbs. (1857 Kg)

Hose Ports:

1 1/2 Inch NPT

Fuel Capacity:
89 US Gal. (337 L)

HT150DD/DV Specifications
