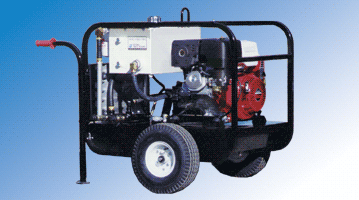

Hydra-Tech HT15DH Diesel Driven Power Unit

Hydra-Tech HT15DH Diesel Driven Power Unit

The Hydra-Tech HT15DH power unit features a Hatz air cooled diesel engine, large oil reservoir and several lifting points for easy handling. A versatile power source for hydraulic tools, cylinder and hydraulic motor applications.

Portable Hydraulic Power Unit Features Reliable 15 HP Hatz Air-Cooled Diesel In A Roll Cage Chassis With Multiple Lifting Points.

Power:

Hatz 15 HP Air Cooled Diesel

Hydraulic Pump:

Vane Type

Maximum Flow:

10 GPM (38 LPM)

Maximum Pressure:

2000 PSI (136 Bar)

Weight:

600 Lbs. (272 Kg)

Hose Ports:

3/4 Inch NPT
Fuel Capacity:
1.8 US Gal. (7 L)

HT15DH Specifications
