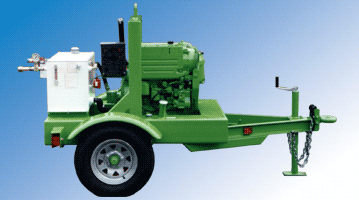

Hydra-Tech HT35DD Diesel Driven Power Unit

Hydra-Tech HT35DD Diesel Driven Power Unit

The Hydra-Tech HT35DD power unit is driven by a Deutz air cooled diesel engine and is designed to drive several of our pump models including the S4VHL. A large, built-in fuel tank allows this unit to run up to 24 hours between refills. Other equipment that require flows to 20 GPM may also operate from this power unit.

This 35 HP Diesel Driven Power Unit Features a Deutz Air-Cooled Engine and up to 24 Hours Fuel Capacity. Will Drive Several of our Pump Models or Other Tools requiring Hydraulic Flows up to 20 GPM (76LPM).


Deutz 35 HP Air-Cooled Diesel

Hydraulic Pump:

Vane Type

Maximum Flow:

20 GPM (76 LPM)

Maximum Pressure:

2500 PSI (170 Bar)


1580 Lbs. (716 Kg)

Hose Ports:

3/4 Inch NPT

Fuel Capacity:
40 US Gal. (151 L)

HT35DD Specifications
