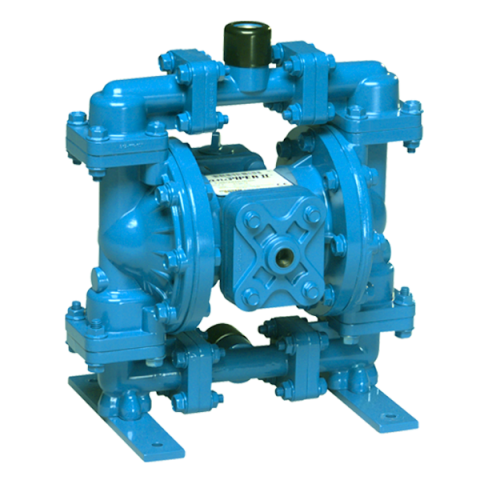

S05 Sandpiper AODD Standard Duty Metallic Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Specifications

Port Size
1/2″ NPT (Internal) or 1/2″ BSP (Tapered)
1″ NPT (External) or 1″ BSP (Tapered)
1/2″ Raised Face 150# ANSI Flanges – Stainless Steel ONLY
Capacity
0 to 15 gpm (56 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .125″ (3 mm)
Heads Up To
125 psi or 298 ft. of water (8.6 bar or 86 meters)
Displacement/Stroke
.026 gallons (.098 liters)
Max Operating Pressure
125 psi (8.6 bar) metallic center & 100 psi (7 bar) non-metallic center
Shipping Weight
Aluminum: 15 lbs. (7 kg.)
Stainless Steel: 21 lbs. (10 kg.)

Click here for S05 Standard Duty Pump Data Sheet.
