FLUX F310 JUNIORFLUX Sealed Container Pump

FLUX F310 JUNIORFLUX Sealed Container Pump

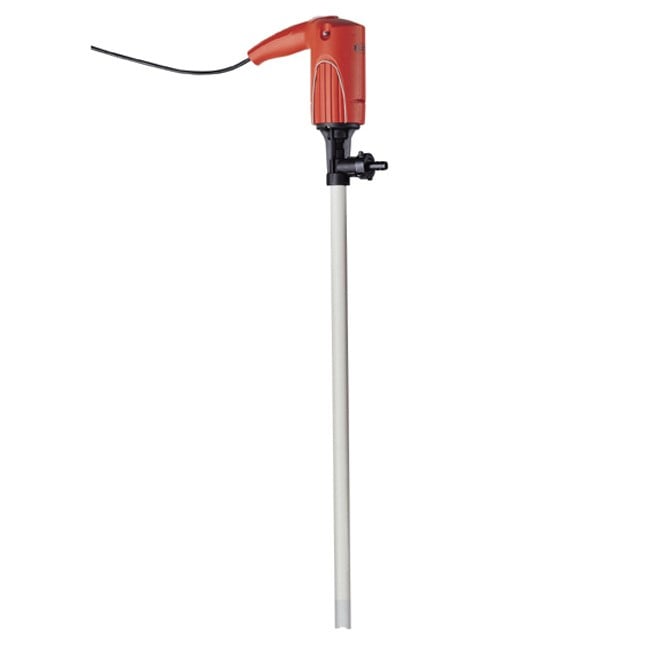

For smaller quantities, the JUNIORFLUX F310 with fixed commutator motor and mechanical seal is especially suitable for pumping comparatively small quantities out of containers such as canisters up to 55 gal drums. The small diameter of the outer tube allows this unit to be used in containers with small openings.

  • Suitable for transferring smaller quantities
  • Used in narrow-necked containers
  • Lightweight and easy to handle
  • Safe operation due to overload cut-out switch
  • Easy single-hand operation
  • Hand nozzle can be stored on pump
  • Low storage space required
  • Available as pump kit

Technical Data

  • Flow Rate: max 12 GPM
  • Delivery Head: max 22 ft
  • Viscosity: 1 – 250 cPs
  • Outer Tube Diameter: 25 mm – 32 mm
  • Standard Immersion Lengths: 20, 27, 39 in (500, 700, 1000 mm)
  • Materials of Construction: Polypropylene, Polyvinyldene fluoride (PVDF)
  • Temperatures to 140°F (60°C)
  • Fluid Examples: Acids, Alkalis, Cleaning Solutions, Aggressive chemicals
  • Seal: mechanically sealed
  • Containers: Pails, Buckets, Carboys, Hobbocks, 55 Gal Drums
