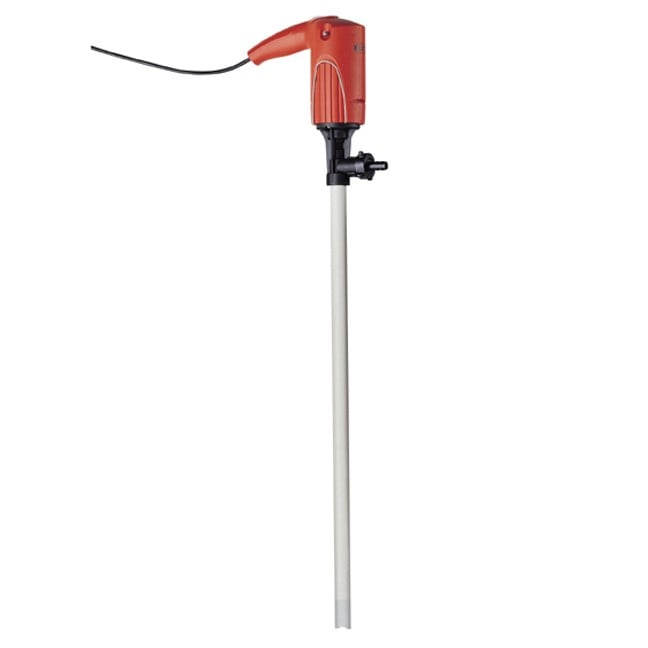

FLUX F314 JUNIORFLUX Sealless Container Pump

F314 JUNIORFLUX Sealless

For smaller quantities, the JUNIORFLUX F314 sealless design with fixed electric motor is especially suitable for pumping comparatively small quantities out of containers such as canisters up to 55 gal drums. The small diameter of the outer tube allows this unit to be used in containers with small openings.

  • Sealless in the liquid area
  • Suitable for transferring smaller quantities
  • Used in narrow-necked containers
  • Lightweight and easy to handle
  • Safe operation due to overload cut-out switch
  • Easy single-hand operation
  • Hand nozzle can be stored on pump
  • Low storage space required
  • Available as pump kit

Technical Data

  • Flow Rate: max 15 GPM
  • Delivery Head: max 27 ft
  • Viscosity: 1 – 250 cPs
  • Outer Tube Diameter: 25 mm – 32 mm
  • Standard Immersion Lengths: 20, 27, 39, 47 in (500, 700, 1000, 1200 mm)
  • Materials of Construction: Polypropylene, Polyvinylidene fluoride (PVDF), Stainless steel
  • Temperatures to 140°F (60°C)
  • Fluid Examples: Acids, Alkalis, Cleaning Solutions, Aggressive chemicals
  • Seal: mechanically sealed
  • Containers: Pails, Buckets, Carboys, Hobbocks, 55 Gal Drums, Totes
