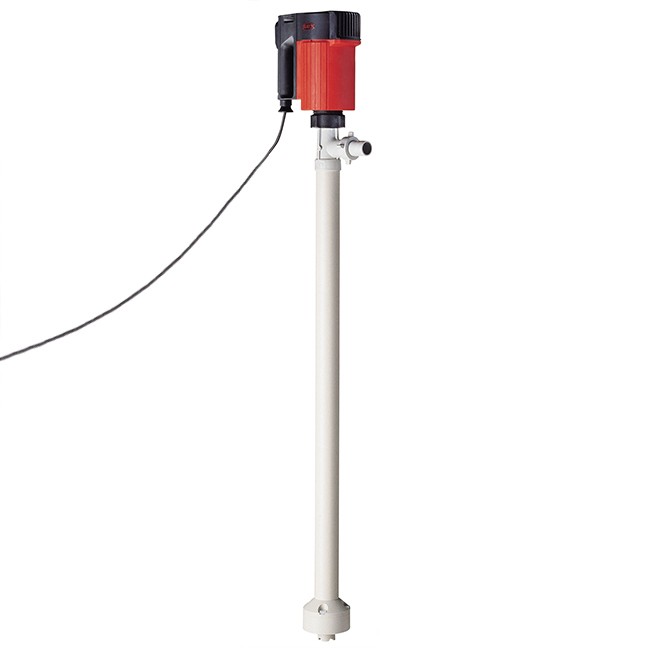

FLUX F430 High Head Pump

Pump F 430 100/50 was designed for higher delivery pressure. Instead of a rotor, it is equipped with an impeller in a pump casing. In connection with the powerful FLUX motors, the pump delivers a far higher pressure of over 43 PSIG (3 bar) compared to pumps with semi-axial rotors. This makes it especially convenient for conveying media out of totes, IBCs and other containers up to mezzanines or out of an IBC in the basement to the floors above

• For media such as e.g. acids and bases as well as for low-viscosity, neutral liquids

• Uses a mechanical seal to seal the inner tube
• Steel reinforced inner tube enables the full function of the mechanical seal in all application temperature ranges and prevents leakage and unnecessary wear
• For IBCs, in connection with powerful motors
• Can be used as a supply pump to a network of lines, for example, the feeding of process water

Technical Data

• Flow rate: max. 27 GPM
• Delivery head: max. 104 ft
• Viscosity: >1 – 105 cPs
• Immersion length: 39, 47, 60 in (1000, 1200, 1500 mm)
• Materials outer tube: Polypropylene
• Fluid Examples: Acids, Alkalis, Neutral media, Thin media, Hardly flammable media
• Seal: with mechanical seal
• Container: Tote, IBC
