FLUX F430 MINIFLUX Pump

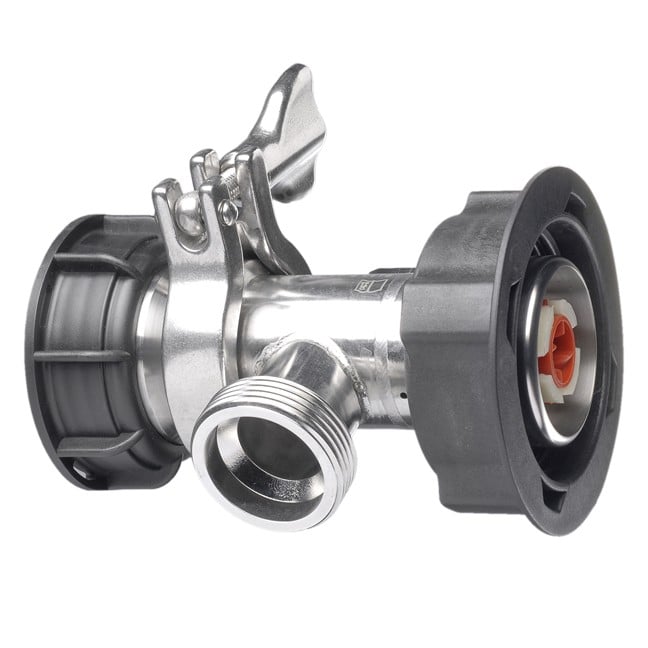

Flux F430 MINIFLUX horizontal container pump

The MINIFLUX compact container pump is designed for emptying tote and IBCs by use of the bottom connection. Designed as an alternative to a vertical pump, the MINIFLUX can be used when an IBC is not accessible from the top opening. It is suitable for applications when gravity draining via the outlet tap is insufficient (e.g. greater flow requirement) or to transfer to another container in a higher location. This compact pump can be powered by an electric or compressed air motor.

  • For pumping out of IBCs directly from the outlet
  • Simple connection of the pump to the outlet by union nut
  • Compact design with minimal space requirement
  • Can be dismantled into two parts via clamp
  • Low overall weight of 2.5 lbs
  • Does not require access to the container from above
  • Ideally combined with commutator motor or compressed-air motor
  • Significantly higher flow rate and pressure compared to draining by gravity
  • Delivery against closed valve possible (e.g. hand nozzle, flap valve etc.)
  • Suitable for use in hazardous areas

Technical Data

  • Flow Rate: max 63 GPM
  • Delivery Head: max 42 ft
  • Viscosity: <1 – 1000 cPs
  • Outer Tube Diameter: 41 mm
  • Materials of Construction: Stainless Steel
  • Temperatures to 212°F (100°C)
  • Fluid Examples: Low concentration of Acids & Alkalis, Solvents, Water based solutions, Flammables
  • Seal: mechanically sealed
  • Containers: IBCs, Totes
