FLUX F430 Tote Pump

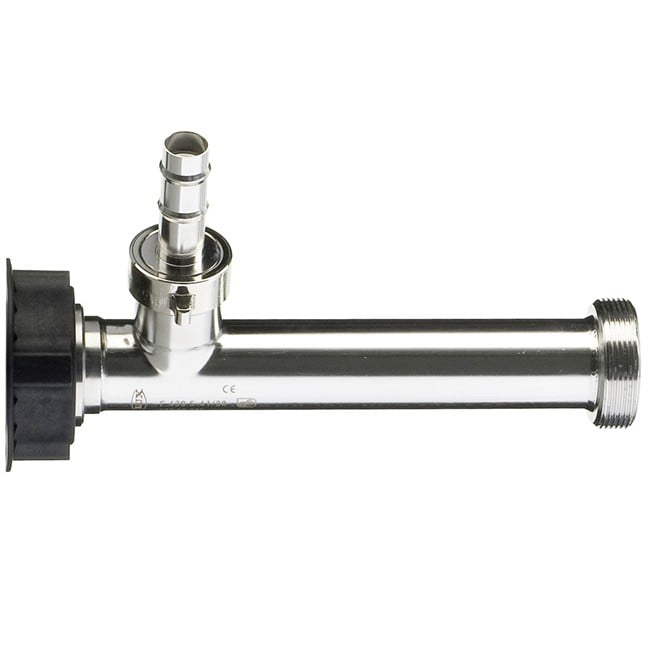

Horizontal pump F 430 TR is ideal for conveying media from IBCs, tanks and other containers with low level outlet. For example, if a tank is not accessible from the top, or if the spatial conditions do not allow use of a vertical pump. For cleaning, the pump can be quickly and easily disassembled into its two main components. The pump is available in stainless steel or polypropylene. The stainless steel version can also be used in hazardous areas.
- Can be used for numerous media
- For containers with bottom outlet providing highest flexibility in fixed and portable installations
- Utilizes a mechanical seal for sealing the inner tube
- 200 mm long
- Can be combined with various motors as required
- Temporary operation against closed valve possible (hand nozzle, ball valve)
- Versions for use in hazardous areas available
- Grease-lubricated shaft bearing
Technical Data
- Flow Rate: max 63 GPM
- Delivery Head: max 42 ft
- Viscosity: < 1 – 1200 cPs
- Outer Tube Diameter: 41 mm
- Standard Immersion Lengths: 8 in (200 mm)
- Materials of Construction: Polypropylene, Stainless Steel
- Temperatures to 212°F (100°C)
- Fluid Examples: Acids, Alkalis, Petroleum products, Flammables, Solvents, Fuels
- Seal: mechanically sealed
- Containers: Totes, IBCs
