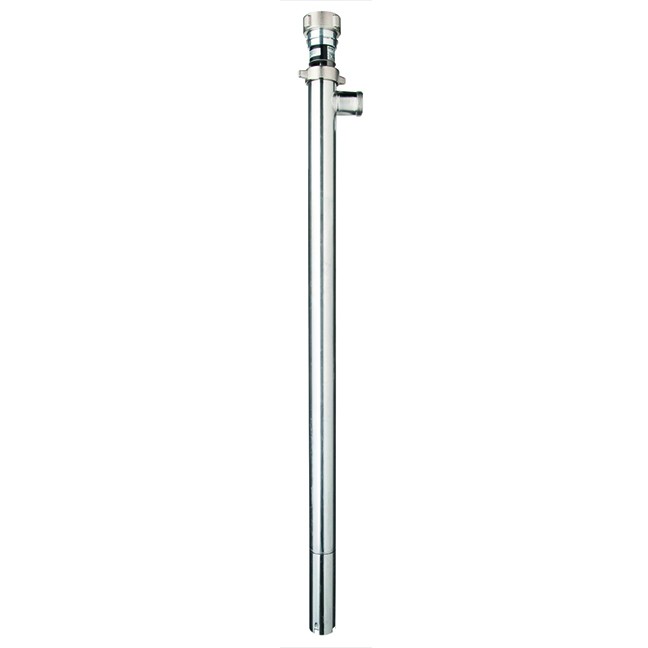

FLUX F550 GS Gear Drive Pump
The FLUX F550GS progressive cavity pump with planetary gearbox is suitable to pump thin to high viscosity liquids. This positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used in mobile and fixed installations. With only a few components used for assembly, the pump can be easily dismantled, cleaned and serviced.
- Positive displacement pump that offers smooth pumping and with very little shear
- Comprehensive modular system for ease of maintenance
- Wide range of viscosity can be covered
- Transfer rate is maintained at constant pressure
- High efficiency pumping
- Available with ATEX certification for use in hazardous area
- Special model F550 GS6 for media up to max. 35,000 cPs
- Can be used in horizontal applications
Technical Data
- Flow Rate: max 12 GPM (45 l/min)
- Delivery Pressure: max 116 PSIG
- Viscosity: 1 – 50,000 cPs
- Outer Tube Diameter: 50 – 54 mm
- Standard Immersion Lengths: 27, 39, 47, 60 in (700, 1000, 1200, 1500 mm)
- Materials of Construction: Stainless Steel
- Temperatures to 248°F (120°C)
- Fluid Examples: Grease, varnish, solder paste, adhesives, coatings, etc,
- Seal: mechanically sealed
- Containers: 55 Gal Drums, totes, IBCs
