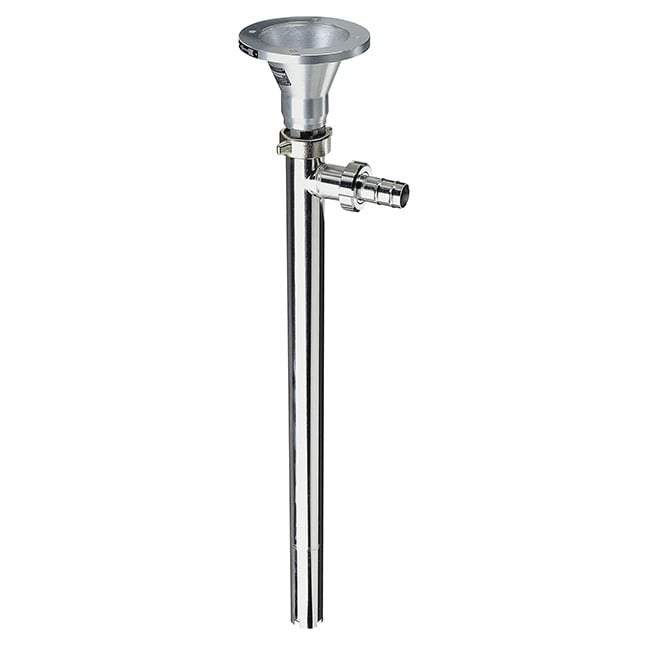

FLUX F550 S Direct Drive Pump

The FLUX  F550 S progressive cavity pump with bearing flange is suitable to pump thin to high viscosity liquids. This positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used in mobile and fixed installations. With only a few components used for assembly, the pump can be easily dismantled, cleaned and serviced.

• Positive displacement pump
• Covers a wide range of viscosity
• Smooth pumping of the liquid with very little shear
• Continuous operation
• Comprehensive modular system
• Pump can be completely dismantled
• Bearing flange between motor and shaft
• Can be used for metering/batching
• Explosion-proof version available

Technical Data

• Flow Rate: max 12 GPM (45 l/min)
• Delivery Pressure: max 116 PSIG
• Viscosity: 1 – 100,000 cPs
• Outer Tube Diameter: 1.97 in – 2.13 in(50 – 54 mm)
• Standard Immersion Lengths: 27, 39, 47, 60 in (700, 1000, 1200, 1500 mm)
• Materials of Construction: Stainless Steel
• Temperatures to 248°F (120°C)
• Stator materials: PTFE, NBR black, NBR white, FKM
• Seal: mechanically sealed
• Containers: 55 Gal Drums, totes, IBCs
