FLUX F550 TR Horizontal Pump

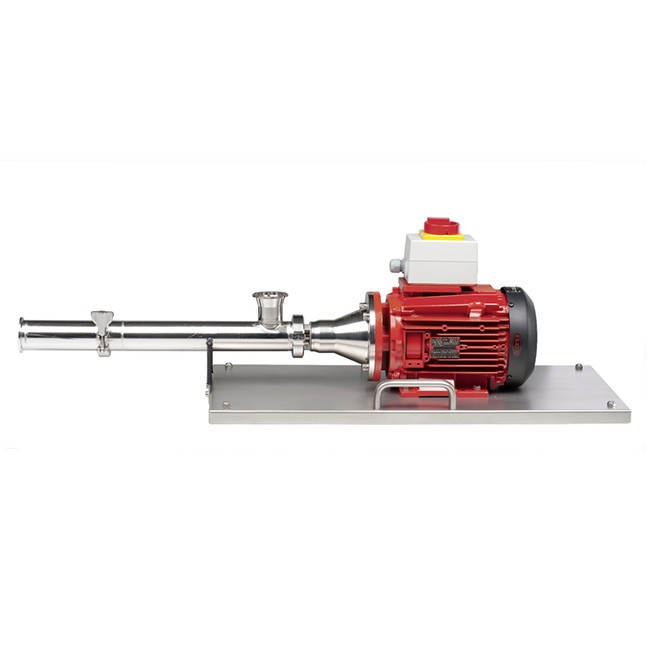

The FLUX F550 TR progressive cavity pump is perfect for containers that are not accessible from the top. It is used to pump thin to highly viscous, pasty, yet still flowing media. The pump imparts very little shear, at constant pressure and ensures a smooth, pulsation-free flow. The pump can be mounted on a cart for portable use or a base plate for fixed installation into processes. With few components, these units are quick to service and easy to clean.
- For containers which are not accessible from the top
- GS style is also possible (limited to 50,000 cPs)
- Can also be used as a process pump
- Positive displacement technology
- Smooth flow and gentle handling
- Minimal pulsation
- Pump/shaft/worm can be easily disassembled
- Bearing flange between motor and shaft
- Driven by three-phase motor, gear motor or air motors
- Stainless steel construction (aluminum bearing flange)
Technical Data
- Flow Rate: max 12 GPM (45 l/min)
- Delivery Pressure: max 116 PSIG
- Viscosity: 1 – 100,000 cPs
- Outer Tube Diameter: 2.13 in (54 mm)
- Standard Immersion Lengths: 18 in (457 mm)
- Materials of Construction: Stainless Steel
- Temperatures to 248°F (120°C)
- Stator materials: PTFE, NBR black, NBR white, FKM
- Seal: mechanically sealed
- Versions for use in hazardous areas available
