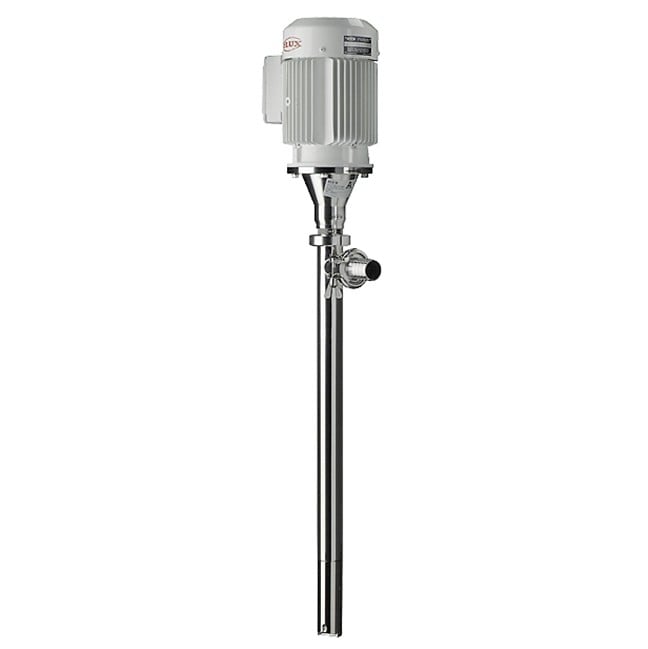

FLUX F560 S Direct Drive Pump
The FLUX F560 S progressive cavity pump with bearing flange is suitable to pump highly viscous products and liquids just capable of flowing. This positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The pump is especially designed to meet the specific requirements of the food, cosmetic and pharmaceutical industries. Models can be used in mobile and fixed installations. With only a few components used for assembly, the pump can be easily dismantled, cleaned and serviced.
- Available as 3A Certified and FDA compliant
- Closed mechanical seal of easy cleanability
- Positive displacement pump that offers smooth pumping and with very little shear
- Comprehensive modular system for ease of maintenance
- Wide range of viscosity can be covered
- Transfer rate is maintained at constant pressure
- High efficiency pumping
- Available with ATEX certification for use in hazardous area
- Can be used in horizontal applications
Technical Data
- Flow Rate: max 12 GPM (45 l/min)
- Delivery Pressure: max 116 PSIG
- Viscosity: 1 – 100,000 cPs
- Outer Tube Diameter: 1.97 in – 2.13 in (50 – 54 mm)
- Standard Immersion Lengths: 27, 39, 47, 60 in (700, 1000, 1200, 1500 mm)
- Materials of Construction: Stainless Steel
- Temperatures to 248°F (120°C)
- Stator materials: PTFE, NBR black, NBR white, FKM
- Seal: mechanically sealed
- Containers: 55 Gal Drums, totes, IBCs
