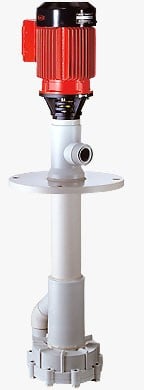

Flux Pumps Type F 640 PP/PVDF Vertical Centrifugal Immersion Pump

FLUX Pumps vertical centrifugal immersion pump Type F 640 PP and PVDF with mechanical seal.

Vertical Centrifugal Immersion Pump Type F 640 PP / PVDF Features

  • for transferring corrosive liquids in the chemical industry and chemical engineering
  • the centrifugal impeller in the pump housing is driven by the drive shaft supported in the inner tube
  • a mechanical seal in ceramic oxide/SiC, o-rings in FKM, separates the liquid from bearings and upper shaft
  • a steel cored inner tube in PP or PVDF provides the ultimate in stability, preventing elongation of the plastic at high temperatures
  • range of carefully chosen impeller diameters
  • 2 sizes: 185 and 230 to meet varying capacity requirements

Construction features in detail:

Pumps Available In:

  • Polypropylene (PP) or Polyvinylidenfluoride (PVDF)

Nominal Lengths:

  • 400 to 4100 mm in steps of 100 mm

Available Drive Motors:

  • Three-phase motors 0,75 – 4,0kW, 2850 rpm, jet-proof to IP 55

Click here for Performance curve Type F 640 PP/PVDF-185.
Click here for Performance curve Type F 640 PP/PVDF-230.
Click here for Flux Brochure.
