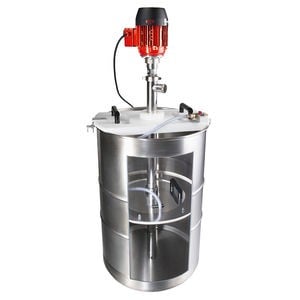

FLUX VISCOFLUX Lite Drum Unloading System
The VISCOFLUX lite drum unloading system is used to transfer higher-viscosity media that is just capable of flowing from 55 gal drums. A complete system is made up of: F 500 eccentric worm-drive pump & motor, pump centering flange and a follower plate with process seal.
- Simple to install with few components
- Captures over 98% of the product in the drum
- Gentle handling of sensitive products
- Quick disassembly allows for fast cleaning
- Follower plate seal creates an airtight barrier
- Low installation height requirement
- Full range of accessories
- Eccentric worm-drive pump for gentle transport of the medium with little turbulence and pulsation
Technical Data
- Flow rate: max. 13 GPM
- Delivery pressure: max. 116 PSIG
- Viscosity: max. 500,000 cPs
- Assists in pumping substances that are just capable of flowing
- Fits drums with an inner diameter of 20 in/22.2 in (510mm/571.5 mm)
- Residual product in drum is less than 1-2 %
