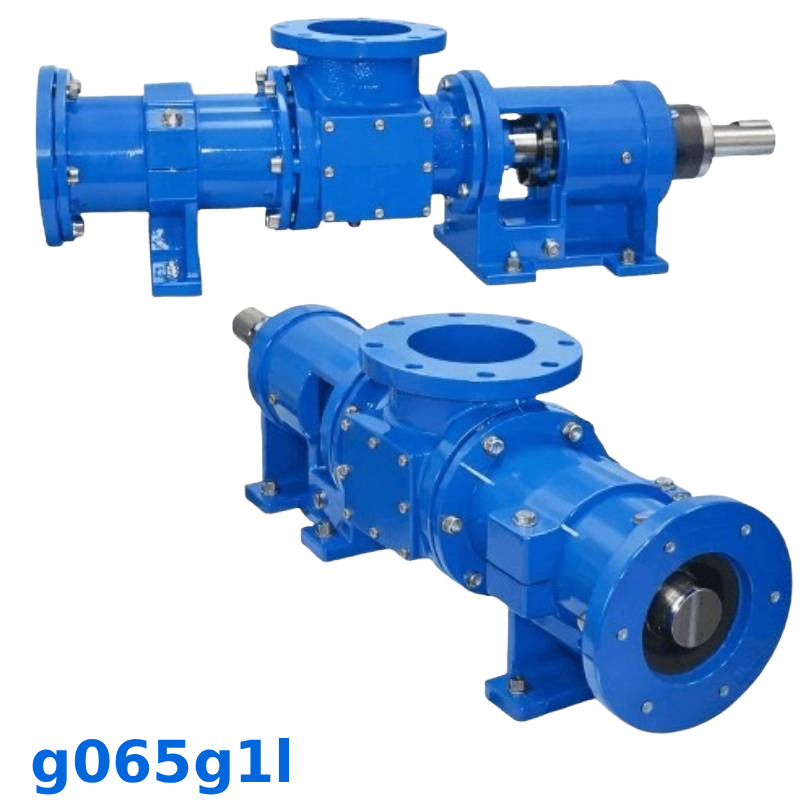

G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump

G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump

The G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump is ideal for high viscosity solids-enriched liquids and heavy waste solids in secondary pumping appliocations such as (WAS) Waste Activated Sludge Removal applications in water treatment facilities.

The G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump is a popular model among the wastewate industry for its ability to pump mixed liquor in the activated sludge control process as well as a majority of the other pumping jobs required in the waste activated sludge process. Solids handling capability of up to 50% by weight allows even the toughest application to be pumped.

The G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump’s flow rate of 65 gallons/100 revolutions @ 226 to 293 GPM comes in addition to its high temperature resistance of up to 350° degrees fahrenheit and is a standard ANSI flanged pump design manufactured with high strength cast Iron or 316 Stainless Steel pump casings and designed in 1, 2 and up to 4 stages for 85, 170, and 350 psi discharge pressures. Standard suction and discharge flange size for the G065G1L is 8″.

All replacement parts for the G065G1L series such as rotors, stators and internal wetted parts such as seals and connecting rods dimensionally interchange as aftermarket replacements with other popular manufacturers pump models like the *Moyno® 2000 Series, the *Tarby® Century V Series, and the *Continental® CG Series of Progressive Cavity Pumps saving you thousands of dollars in replacement part costs and lost downtime waiting for OEM replacements.

The ‘s modular design comes with a positively sealed, hardened gear joint assembly, hardened tool steel rotors or stainless steel rotors both with hard chrome plating for long-life pumping and a wide selection of stators in Buna Nitrile, Viton®, EPDM and Natural Rubber. All other wetted parts are either carbon steel or 316 stainless steel. The standard seal design is a set of packing with a Lantern Ring and flush connections. Mechanical seal options are readily available.

Technical Data

  • FLOW RATE – 226 – 293 GPM
  • PRESSURE – 85 – 350 PSI
  • SEAL OPTIONS – Packing and Mech. Seal
  • BASE OPTIONS – Steel and Stainless Steel
  • INLET/OUTLET – 8″ x 8″ – ANSI Flange
  • ROTORS – Chrome Plated Tool Steel or Stainless Steel
  • STATORS – Buna Nitrile /Viton®/EPDM/Rubber
  • MOTOR OPTIONS – 1/2, 3/4, 1, 1.5, 2 HP

Features

  • Low Shear
  • Solids handling up to 50%
  • Hardened Joints
  • Packing or Mechanical Seal
  • 3-Stage Options
  • Steel or Stainless Steel

Click here for G065G1L Series Heavy Duty Waste Activated Sludge Progressive Cavity Pump Brochure
