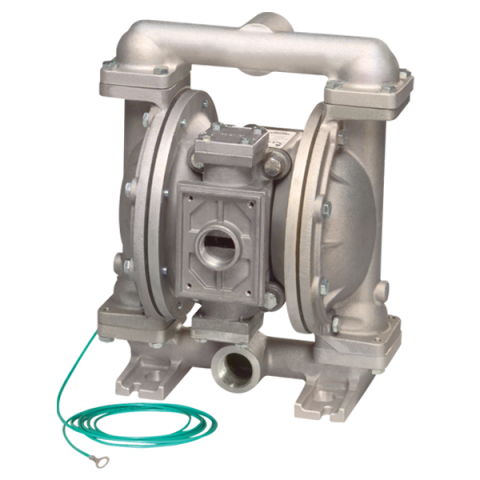

G1F Sandpiper Natural Gas Operated Metallic Pump

Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified to ANSI LC6 standard for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156. The gas pump utilizes Aluminum or 316 Stainless Steel wetted construction with Nitrile or Virgin PTFE diaphragms and check balls. The gas valve is constructed of Aluminum with Nitrile or FKM (fluorocarbon) elastomers. Pumps are fully groundable, preventing static discharge. A Stainless Steel gas valve option is available on G15 to G30 pumps for more corrosive applications.

Specifications

Port Size
1″ NPT / BSP
Capacity
0 to 45 gpm (170 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .25″ (6 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
.11 gallons (.42 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Aluminum: 28 lbs. (13 kg)
Stainless Steel: 43 lbs. (20 kg)

Click here for G1F Metallic Pump Data Sheet.
