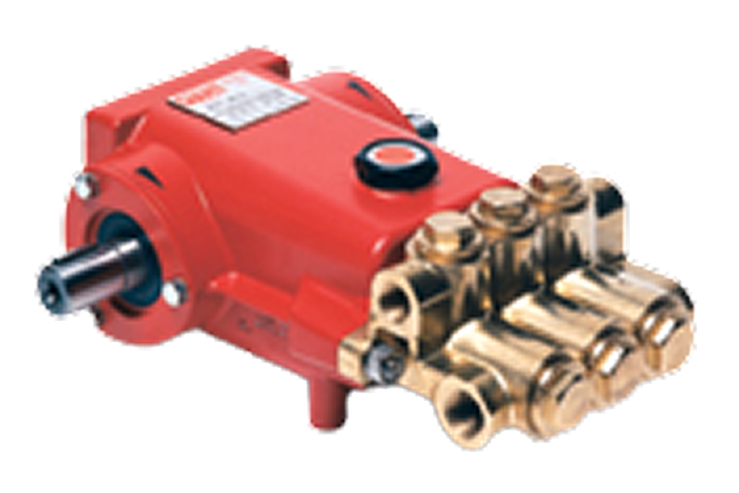

Giant BP100 Bentonite Triplex Plunger Pumps

Giant BP100 Bentonite Triplex Plunger Pumps

A German-made reciprocating triplex plunger pump for bentonite applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; special seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

Specifications

Flow 5.9 GPM 22.4 L/min
Max Pressure 1880 PSI 130 bar
Plunger Diameter 1.02? 26 mm
Stroke 0.79? 20 mm
Max Temperature 194 ºF 90 ºC
Inlet Ports (2) 3/4? NPT
Discharge Ports (2) 1/2? NPT
Shaft Rotation Top of Pulley Towards Fluid End
Weight 41.8 lbs. 19 kg
Crankcase Oil Capacity 24 fl oz 710 ml
Shaft Mounting Either Side
