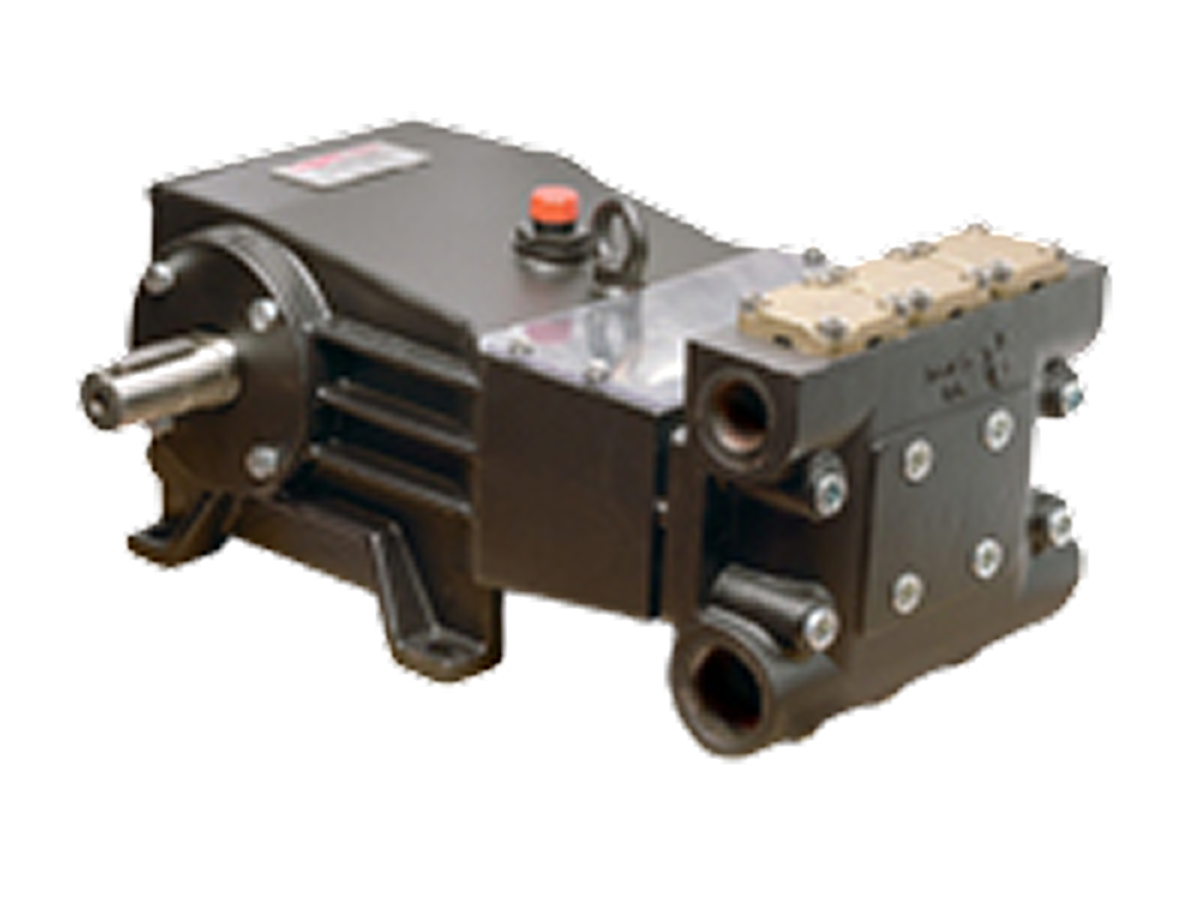

Giant BP6150 Bentonite Triplex Plunger Pumps

Giant BP5236 Bentonite Triplex Plunger Pumps

A German-made reciprocating triplex plunger pump for bentonite applications.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; special seals with fabric reinforcing; stainless steel valves and Spheroidal cast iron manifold.

Specifications

Flow 42.3 GPM 160 L/min
Max Pressure 1450 PSI 100 bar
Power Required 43.8 HP 32.7 kW
Plunger Diameter 1.97? 50 mm
Stroke 1.89? 48 mm
Max Temperature 104 ºF 40 ºC
Inlet Ports (2) 2-1/2? BSP
Discharge Ports (2) 1-1/4? BSP
Shaft Rotation Top of Pulley Towards Manifold
Weight 260 lbs. 118 kg
Crankcase Oil Capacity 1.1 gal 4.2 Liters
Crankshaft Diameter 45 mm
Key Width 0.47? 12 mm
Shaft Mounting Either Side
