The Hydra-Tech HT100DJV is a high performance 100 H.P. model features a John Deere turbocharged 4cyl. water cooled diesel and pressure compensated hydraulic pump. It is designed to drive our larger submersible pumps or other hydraulic equipment requiring flows to 53 GPM and pressures to 2500 PSI.

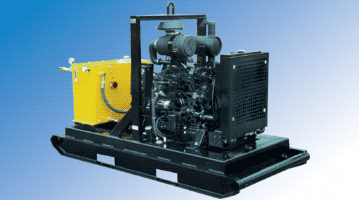

Mid-Range 100 HP Diesel Hydraulic Power Unit. John Deere Liquid-Cooled Engine. Unit Is Shown With Optional Skid Frame. Trailer Option Is Available.
|
Power: |
John Deere 100 HP Liquid-Cooled Diesel |
|
Hydraulic Pump: |
Pressure Compensated Piston Type |
|
Maximum Flow: |
53 GPM (201 LPM) |
|
Maximum Pressure: |
2500 PSI (170 Bar) |
|
Weight: |
2650Lbs. (1200 Kg) |
|
Hose Ports: |
1 1/4 Inch NPT |
|
Fuel Capacity:
|
57 US Gal. (216 L)
|
