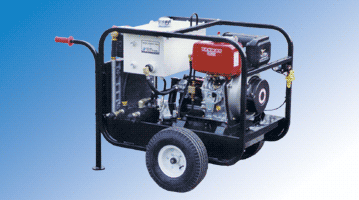

Hydra-Tech HT11DXR Diesel Driven Power Unit

Hydra-Tech HT11DXR Diesel Driven Power Unit

The Hydra-Tech HT11DXR diesel power unit features an extended run fuel tank, extra oil cooling and easy handling. Great for continuous duty applications powering our pumps or other hydraulic equipment.

Portable Hydraulic Power Unit is an extended running version of the HT11D Power Unit. Additional Features Include

  • Larger Reservoir and Hydraulic Oil Cooler.
  • Great For Continuous Duty Applications.
  • Power Unit Includes Wheel Kit As Shown.



Power:

Yanmar 10 HP Air-Cooled Diesel

Hydraulic Pump:

Gear

Maximum Flow:

6 GPM (23 LPM)

Maximum Pressure:

2100 PSI (143 Bar)

Weight:

395 Lbs (179 Kg)

Hose Ports:

1/2 or 3/4 Inch NPT
Fuel Capacity:
15 US Gal. (57 L)

HT11DXR Specifications
