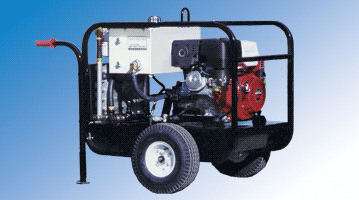

Hydra-Tech HT13GXR Diesel Driven Power Unit

Hydra-Tech HT13GXR Diesel Driven Power Unit

The Hydra-Tech HT13GXR gasoline powered power unit features an extended run fuel tank, extra oil cooling and easy handling. Great for continuous duty applications powering our pumps or other hydraulic equipment.

Extended Running Version of HT13G Power Unit. Enlarged Fuel Tank and Oil Reservoir Plus Hydraulic Oil Cooler. Excellent For Continuous Duty Applications. Power Unit Includes Wheel Kit.



13 HP Air-Cooled Honda Gasoline Engine, Recoil Start

Hydraulic Pump:

Gear Type

Maximum Flow:

6 GPM (23 LPM)

Maximum Pressure:

2100 PSI (143 Bar)


355 Lbs (161 Kg)

Hose Ports:

1/2 or 3/4 Inch NPT
Fuel Capacity:
15 US Gal. (57 L)

HT13G Specifications
