Hydra-Tech HT150DJD HT150DJV Diesel Driven Power Unit

Hydra-Tech HT150DJD/DJV Diesel Driven Power Unit

The Hydra-Tech HT150DJD/DJV 150 horsepower hydraulic power unit features a John Deere water cooled diesel engine, pressure compensated hydraulic pump (DJV model),engine mounted hydraulic oil cooler and built-in fuel tank. It is designed to power our larger submersible pumps and other hydraulic equipment requiring flows up to 70 GPM.

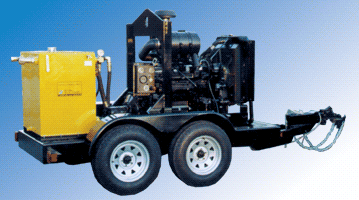

150 HP John Deere Diesel Power Unit (Shown On Highway Trailer).

Power:

John Deere 150 HP Liquid-Cooled Diesel

Hydraulic Pump:

HT150DD: Gear Type HT150DJV: Piston Type

Maximum Flow:

70 GPM (265 LPM)

Maximum Pressure:

2500 PSI (170 Bar)

Weight:

4800 Lbs. (2182 Kg) (skid)

Hose Ports:

1 1/2 Inch NPT

Fuel Capacity:
89 US Gal. (337 L)

HT150DJD/DJV Specifications
