Hydra-Tech HT25DD Diesel Driven Power Unit
Hydra-Tech HT25DYS/HT25DJS Diesel Driven Power Unit

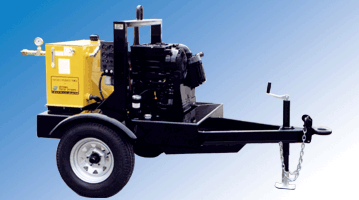

The Hydra-Tech HT25DD power unit is driven by a Deutz air cooled diesel engine and is designed to drive several of our pump models including the S4T and S8M. A large, built-in fuel tank allows this unit to run up to 24 hours between refills. Other equipment that require flows to 15 GPM may also operate from this power unit.
This 25 HP Diesel Driven Power Unit Features a Deutz Air-Cooled Engine and 24+ Hours Fuel Capacity. Will Drive Several of our Pump Models or Other Tools requiring Hydraulic Flows up to 15 GPM (57LPM).
|
Power: |
25 HP Air-Cooled Deutz Diesel Engine |
|
Hydraulic Pump: |
Vane Type |
|
Maximum Flow: |
15 GPM (57 LPM) |
|
Maximum Pressure: |
2500 PSI (170 Bar) |
|
Weight: |
1380 Lbs. (625 Kg) |
|
Hose Ports: |
3/4 Inch NPT |
|
Fuel Capacity:
|
37 US Gal. (140 L) |
