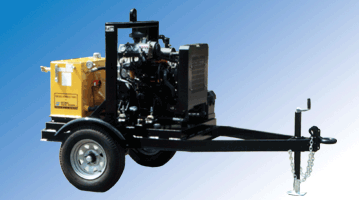

Hydra-Tech HT30DJS Diesel Driven Power Unit

Hydra-Tech HT30DJS Diesel Driven Power Unit

The Hydra-Tech HT30DJS is powered by a John Deere diesel engine, this unit is designed to drive several of our pump models including the S3CML, S3VHL, S4T and S8M. A large, built-in fuel tank allows this unit to run up to 24 hours between refills. Other tools and equipment that require flows to 16 GPM may also operate from this power unit.

This Diesel Driven Hydraulic Power Unit is Just Right for Jobs Requiring Continuous Operation with Hydraulic Flows to 16 GPM. Features a John Deere Liquid-Cooled Engine and Your Choice of Trailer or Skid Chassis.


John Deere 30 HP Liquid-Cooled Diesel

Hydraulic Pump:

Vane Type

Maximum Flow:

16 GPM (61 LPM)

Maximum Pressure:

2700 PSI (184 Bar)


1200 Lbs. (544 Kg)

Hose Ports:

3/4 Inch NPT
Fuel Capacity:
55 US Gal. (208 L)

HT30DJS Specifications
