Hydra-Tech HT50DJS / HT50DYS Diesel Driven Power Unit

Hydra-Tech HT50DJS/HT50DYS Diesel Driven Power Unit

These Hydra-Tech HT50DJS/HT50DYS diesel power unit is offered with your choice of Yanmar or John Deere power and is designed to drive several of our pump models including the S3CHL, S4SCR, S4THL, S6T, S6V and S12M. A large, built-in fuel tank allows this unit to run up to 24 hours between refills. Other hydraulic tools and equipment may also operate from this power unit.

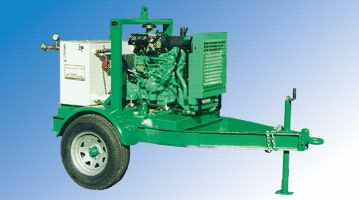

Portable 50 HP Diesel Hydraulic Power Unit. John Deere Liquid-Cooled Engine. Unit Shown Is Custom Painted Per Customer’s Request.

Power:

John Deere 53 HP Liquid-Cooled Diesel

Hydraulic Pump:

Pressure Compensated Piston Type

Maximum Flow:

25 GPM (95 LPM)

Maximum Pressure:

2600 PSI (177 Bar)

Weight:

1660 Lbs. (752 Kg)

Hose Ports:

1 Inch NPT

Fuel Capacity:
75 US Gal. (284 L)

HT50DJS/DYS Specifications
