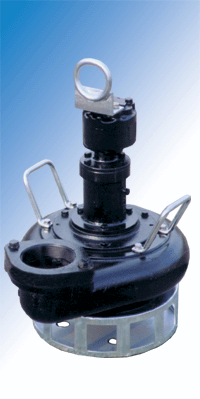

Hydra-Tech S4T 4″ Hydraulic Submersible Trash Pump

The Hydra Tech S4T is our most versatile 4″ pump. It is rugged, compact and able to pass large solids, this pump is designed to tackle many jobs ranging from general construction site dewatering to sewage and slurry pumping.

Features:

  • 2-Vane Channel Impeller (will Pass 3″ (75mm) Semi-Solids)
  • Light Weight (Can be carried by two men)
  • Oil Lubricated Seals (Can Run Dry)
  • Variable Speed
  • Wide Range of Performance
  • Can Be Bolted Directly Into a Pipeline
  • Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
  • Dependable Gear Type Hydraulic Motor
  • Operates With Our HT20G, HT25DYS, Power Unit or Other hydraulic power supply capable of flows to 15 GPM
Hydra-Tech S4T 4" Hydraulic Submersible Trash Pump
WEIGHT:  165lbs. (74 kg)
HEIGHT:  25" (64 cm)
DIAMETER(@ widest point): 19 1/2" (50 cm)
DISCHARGE:  4" NPT(F)
INLET FLANGE:  4", 125# ASA
SOLIDS HANDLING:  3" (75 mm)
HOSE PORTS:  3/4" NPT(F)
PUMP BODY:  Ductile Iron
IMPELLER:  Ductile Iron
SHAFT:  Stainless Steel
SHAFT SEAL: Carbon/Ceramic (Std.)
            Silicon Carbide (Opt.)
ELASTOMERS:   Buna N (Std)
HYDRAULIC OIL:  214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:      Max. 15 GPM (57 LPM)
OPERATING PRESSURE: Max. 2500 PSI (175 Bar)
POWER SOURCE:  Any Open Center Hydraulic System
