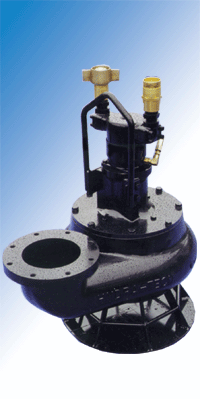

Hydra-Tech S8T 8″ Hydraulic Submersible Vortex Flow Pump
The Hydra-Tech S8T is a vortex flow pump designed to provide reliable high volume pumping on jobs ranging from wastewater to sewage to sludge and debris laden applications. Its ability to pass large semi-solids allows more shear sensitive materials to be pumped with less degradation.
Features:
- Recessed Vortex Impeller will Pass 7″ (17cm) Semi-Solids
- Variable Speed
- Oil Lubricated Seals (Can Run Dry)
- Compact (Will Fit Through a 34″ Opening
- Wide Range of Performance
- Can Be Bolted Directly Into a Pipeline
- Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
- Balanced Vane Type Hydraulic Motor
- Operates With Our HT150DD to HT150DJV Power Units or Other Hydraulic Power Sources with flows of 30-70 GPM
Hydra-Tech S8T 8" Hydraulic Submersible Vortex Flow Pump
WEIGHT: 580 lbs. (263 kg) HEIGHT: 42" (107 cm) DIAMETER (@ widest point): 33 3/4" (86 cm) DISCHARGE: 8" 125# ASA Flange INLET: 8" 125# ASA Flange SOLIDS HANDLING: 7" (17 cm) HOSE PORTS: 1 1/4" or 1 1/2" NPT(F) PUMP BODY: Ductile Iron IMPELLER: Ductile Iron WEAR RING and WEAR PLATE: ASTM A36 Steel SHAFT: 17-4 PH Stainless Steel SHAFT SEAL: Carbon/Ceramic (Std), Silicon Carbide (Opt) ELASTOMERS: Buna N (Std) HYDRAULIC OIL: 214-320 s.s.u. @ 100°F (64°C) INPUT FLOW: Max 70 GPM (265 LPM) OPERATING PRESSURE: Max 2800 PSI (190 Bar) POWER SOURCE: Any Open Center Hydraulic System
