MMX 1000 Series Low RPM Open Head Drum Mixers From Dynamix Agitators
Drum And Barrel Mixing Equipment
The MMX 1000 Series mixer is primarily a Drum Mixer or Barrel Mixer. For light duty or small tank applications we also offer the MMX 2000 Series mixer. The MMX 2000 Series offers economy in larger applications. The MMX line is largely focused on small volume 45, 50 or 55 Gallon Drum Mixer applications. Also known as a Barrel Mixer this line of mixers can be adapted to larger applications when light duty or economical solutions are required. Barrel Mixers and 45 – 55 Gallon Drum Mixers are our smaller mixer line, but Dynamix has applied the same level of design innovation in order to adapt to your barrel or drum.

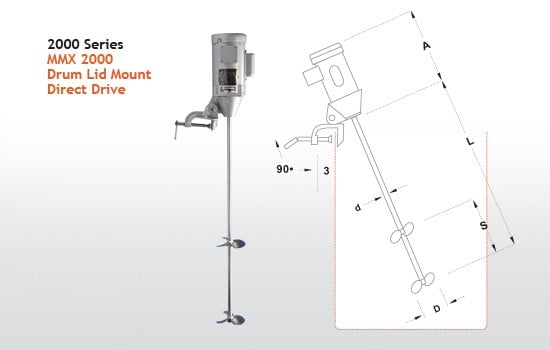

As with all MMX Series Mixers our standard offerings come in many different configurations and dimensions. The following drawings are “typical” and will vary according to your configuration.
DYNAMIX AGITATORS ARE CONFIGURED AND SELECTED ACCORDING TO YOUR NEEDS. THESE IMAGES AND CONFIGURATION OPTIONS ARE ONLY GUIDELINES TOWARD YOUR FINAL MIXER SELECTION.
- MOTORS HP RANGE – 1/4 TO 2 HP
Air, electric, variable speed, explosion-proof, and more
- GEAR REDUCTION – DIRECT, 5:1, 10:1, 21:1
High and low rpm models availible to address your viscosity requirements
- MOUNTING – Mixer mounted onto drum lid
Multiple mounting options for open and closed head drums
- IMPELLERS – FIXED OR COLLAPSIBLE
Collapsible impellers offer increased mixing through 2″ opening
