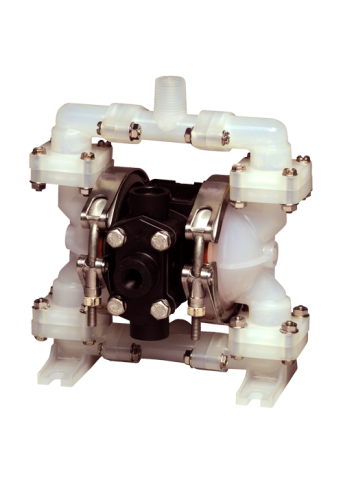

PB1/4″ Sandpiper AODD Standard Duty Non-Metallic Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Specifications

Port Size
1/4″ NPT (Internal)
1/2″ NPT (External)
Capacity
0 to 4 gpm (15 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
1/32″ (1 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 4 lbs. (2 kg)
PVDF: 5 lbs. (2.5 kg)

Click here for PB1/4″ Non-Metallic Standard Duty Pump Data Sheet.
