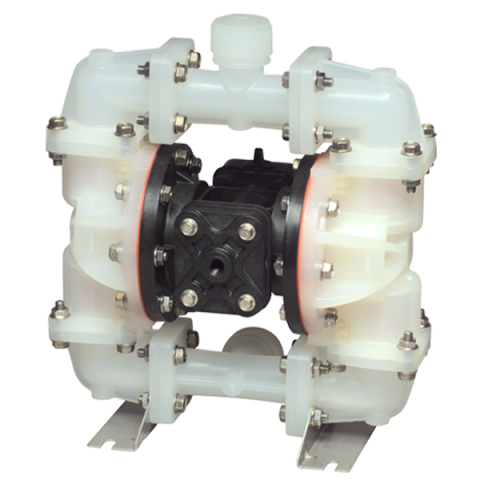

S07 Sandpiper AODD Standard Duty Non-Metallic Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Specifications

Port Size
3/4″ NPT (Internal) or 3/4″ BSP (Tapered)
1 1/2” NPT (External) or 1 1/2″ BSP (Tapered)
Capacity
0 to 23 gpm (87 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .15″ (4 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
.026 gallons (.098 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 17-21 lbs. (8-9.5 kg)
PVDF: 21 lbs. (9.5 kg)
Nylon: 18 lbs. (9 kg)

Click here for S07 Standard Duty Pump Data Sheet.
