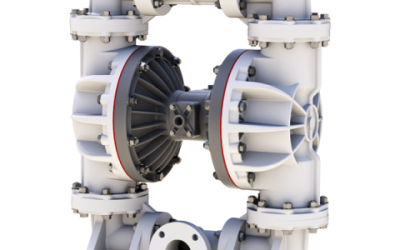

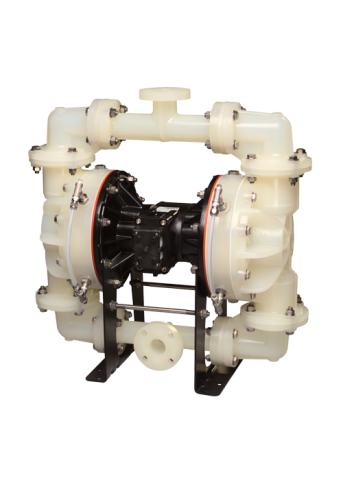

S15 Sandpiper AODD Containment Non-Metallic Pump
Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.
Specifications
Port Size
1 1/2″ ANSI Flange or PN10 40mm DIN Flange
Capacity
0 to 100 gpm (378 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .47″ (12 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
.43 gallons (1.63 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 82 lbs. (37 kg)
PVDF: 112 lbs. (51 kg)
Conductive Polypropylene: 85 lbs. (38 kg)
Polypropylene Spill Containment: 149 lbs. (68 kg)
PVDF Spill Containment: 194 lbs. (88 kg)
