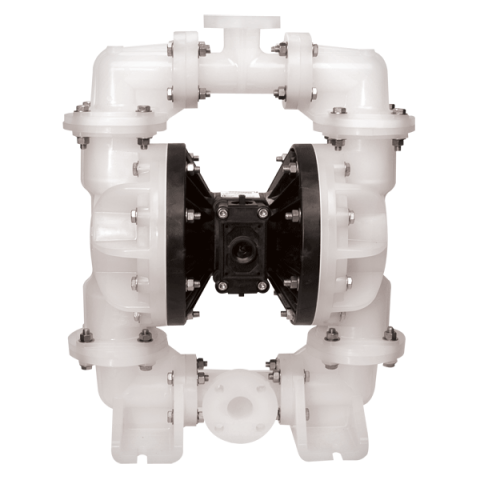

S20 Sandpiper AODD Standard Duty Non-Metallic Pump
Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
Specifications
Port Size
2″ Universal Flange
(Fits ANSI & DIN Flange)
Capacity
0 to 160 gpm (605 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .66″ (17 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
.46 gallons (1.73 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 95 lbs. (43 kg)
PVDF: 130 lbs. (59 kg)
Conductive Polypropylene: 100 lbs. (45 kg)
