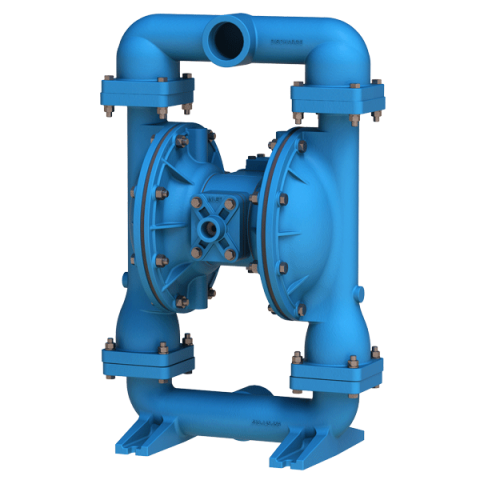

S30 Sandpiper AODD Standard Duty Metallic Pump
Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
Specifications
Port Size
3″ NPT or 3″ BSP (Tapered)
3″ ANSI Flange or 3″ DIN Flange
Capacity
0 to 285 gpm (1078 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .38″ (9.65 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.94 gallons (3.56 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Aluminum: 116 lbs. (53 kg)
Cast Iron: 215 lbs. (98 kg)
Stainless Steel: 194 lbs. (87 kg)
