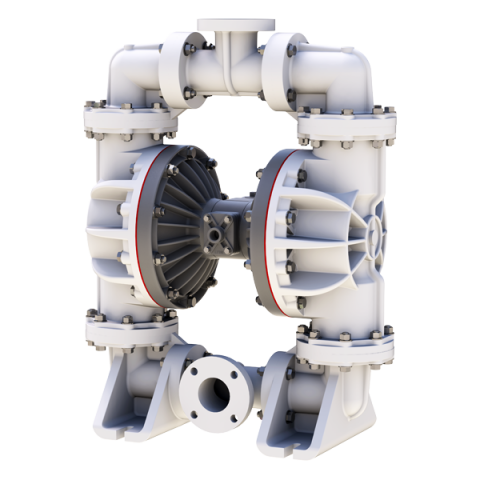

S30 Sandpiper AODD Standard Duty Non-Metallic Pump

The new S30 Non-Metallic Standard Duty Ball Valve Pump is the best choice forbulk chemical transfer applications:

  • Corrosion resistant Polypropylene or PVDF
  • Class leading maximum flow rate and efficiency
  • ESADS+ Air Distribution System. The only pump in its class with an externally serviceable air distribution system
  • Backed by the best technical support available anywhere

Specifications

Port Size
3″ ANSI Flange or 80mm DIN Flange
Capacity
0 to 280 gpm (1,060 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .75″ (19 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
1.0 gallon (3.8 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 165 lbs. (75 kg)
PVDF: 271 lbs. (123 kg)

Click here for S30 Non-Metallic Standard Duty Pump Data Sheet.
