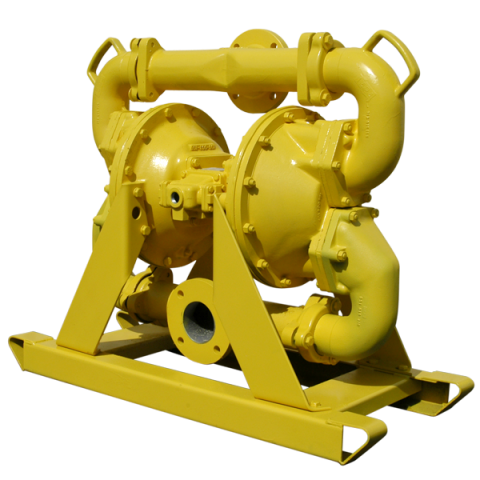

SA3-C Sandpiper Heavy Duty Metallic AODD Pump

When durability and reliability are paramount in the rigorous environments of today’s mines and construction sites, our mining and construction pumps are a great solution. With more ways than one, these pumps are designed to be tossed, dragged and crammed into position to get the fluids you need removed in a hurry.  Some of the most attractive features of these pumps are:

  • Ease of Use
    Superior on-off-on reliability and easy to move with built in handles.
  • Base Mounting Options
    Skid mount, roll cage, and strainer bases available.
  • Performance
    High flow and solids size options available.

Specifications

Port Size
3″ ASA
Capacity
0 to 260 gpm (988 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to 3″ (75 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
1.62 gallon (6.156 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Aluminum: 245 lbs. (110 kg)

Click here for MSA3 Metallic Pump Data Sheet.
