Sanitary Check Valves – Top-Flo® from Top Line

We have top quality 3A approved Top-Flo® Sanitary Check Valves for every application in your ultra pure system: concentric, ball or airblow.

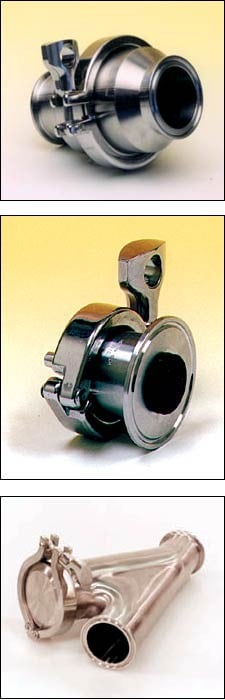

Concentric Disc Sanitary Check Valves:

Our T45mp concentric sanitary check valves include a unique design that allows complete disassembly with just a twist of a wing nut. They can be installed either vertically or horizontally, and they are ideal for CIP applications. Top-Flo T45mp Sanitary Check Valves are suitable for operating pressures up to 150 psi and feature:

  • Stainless steel springs
  • 316L stainless steel
  • Temperature rating of -30oF to 225oF
  • Clamp end connections

Air Blow Sanitary Check Valves:

These sanitary check valves allow you to evacuate and dry your processing lines or air-agitate your product in tanks or other containers for better uniformity. Available with air capacities of up to 4,000 cubic ft/hr, they feature:

  • Tough stainless steel construction
  • Easy assembly and disassembly
  • Conformity to 3A Accepted Practices
  • Remote or manual control

Ball Sanitary Check Valves:

The unique design of Top Line’s Ball Sanitary Check Valve combines unobstructed flow with a quick, secure seal. Constructed of 316 stainless steel, these sanitary check valves are suitable for vertical or horizontal installation and offer:

  • Choice of sizes from 1-1/2″ to 3″
  • Standard clamp ends or other optional connections
  • 3A sanitary finish with higher finishes available
  • Buna or Viton ball

Click here for Concentric Check Valves Detailed Specifications
