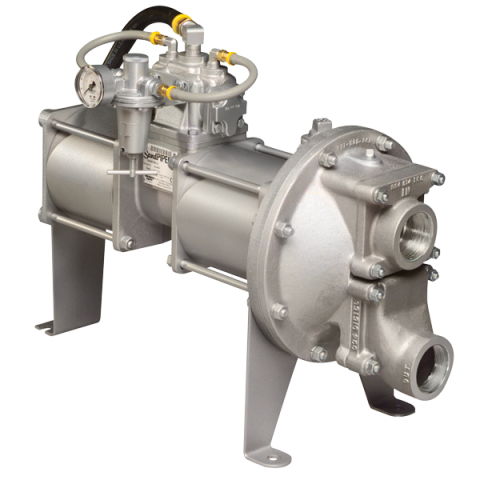

SH2-M Sandpiper High Pressure Metallic AOD Pump

Air-Powered Single Diaphragm High Pressure Metallic Pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17.2 BAR). Designed for filter press feed and applications requiring higher discharge pressures. Available in Aluminum, Cast Iron and Stainless Steel with various elastomer options.

Specifications

Port Size
2″ NPT
Capacity
0 to 62 gpm (235 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to 2″ (50 mm)
Heads Up To
250 psi or 577 ft. of water (17 bar or 176 meters)
Displacement/Stroke
.3 gallons (1.1 liters)
Max Operating Pressure
125 psi (8.6 bar)
Shipping Weight
Aluminum: 138 lbs. (63 kg)
Cast Iron: 150-160 lbs. (68-73 kg)

Click here for SH2 Metallic Pump Data Sheet.
