Slade 3300G Pump Packing and Valve Packing

Slade 3300G Pump and Valve Packing

Features

  • Reduces water consumption
  • Reduces energy consumption
  • Designed to run leak-free
  • Works well on worn sleeves
  • Can be run flush-free in non-abrasive applications
  • Mild flush in abrasive applications
  • Can be used in pumps, valves, mixers and other rotating equipment
  • Temp: Mild Oxidizers to 1800°F/1000°C (e.g., for temperatures over 1000°F/540°C, consult factory)
  • Rotation Speed: Flush free in many services to 4800FPM (1400m/min)
  • Pressures: Valves to 5000 PSI/350 BAR without end-rings
  • pH Range: 1-14

Applications

Chemical, steam, hydrocarbons, pulp & paper, etc.

About The 3300G

Slade 3300G has the same benefits of 3300C, with the additional strength of carbon reinforced corners. Designed to perform as a mechanical seal, leak free. Constructed of high tensile strength carbon and expanded graphite to provide the needed lubrication. Therefore, no leakage is required either to cool or lubricate the packing. Leak free operation will extend run time and shaft sleeve life.

Due to its patented construction of natural, expanded graphite yarns, Slade 3300G turns the stuffing box into a heat sink, conducting heat away from the shaft, in many applications, eliminating expensive leakage previously needed to cool the stuffing box.

Slade Packing can be run flush free in most applications. If media has particulate contamination, a very mild flush should be all that is required to keep solids out of the stuffing box.

Worn shafts and sleeves can easily be sealed. When properly installed, Slade packing will conform to the geometry of the stuffing box and shaft. Therefore Slade can seal most worn sleeves.

Whereas most pump packings are largely abrasive fibers with added lubricants that can be squeezed, washed or cooked out, Slade packing utilizes the self-lubricating qualities of the very best natural, exfoliated graphite.

Incorporating just enough temperature and chemical resistant “carbon fiber” to make very high tensile strength yarns, Slade’s patented technology allows the braided packing rings to transfer frictional heat away from high speed shaft sleeves, eliminating the need, in most cases, for cooling water.

Since cooling or flushing is not typically required, there is no need for lantern rings. This eliminates the concern for the lantern rings being adjusted out of position, flush water ports becoming plugged, or sleeve wear caused by the corrosive nature of highly oxygenated water or hardened sleeves.

By eliminating the lantern ring, the need for packing rings inboard of the lantern ring is also eliminated. With the use of Slade’s Spacer Bushings or Way-2-Seal, the number of rings in the stuffing box can be reduced to 3 sealing rings. With less sealing rings coming in contact with the shaft, less friction and less strain placed on the motor. This has proven to reduce amperage usage by up to 5%. Please contact Slade directly for more information on amperage reduction.

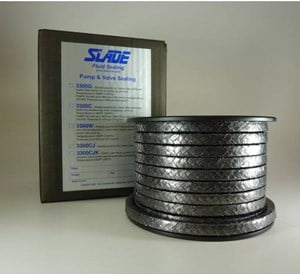

3300G Pump Packing

Advantages

Minimizes or Virtually Eliminates Leakage!
Due to its patented construction of  natural, expanded graphite yarns,  Slade 3300G turns the stuffing box into a heat sink, conducting heat away from shaft, in many applications, eliminating expensive leakage previously needed to cool the stuffing box.

Can Be Operated Flush-Free in Most Applications
Slade 3300G conducts heat away from the shaft/sleeve, in most cases making flush unnecessary. If media has particulate contamination, a very mild flush should be all that is requires.

No flush-water translates into:

  • Exceptional savings, typically 1/2 cent per gallon, or $13,000 annually (U.S.) (based on 5 GPM flush system)
  • No fear of flush-water system becoming plugged or experiencing loss of pressure

Reduces Inventory and Cost

  • By eliminating die-formed rings (cut-rings work fine)
  • Handles most medias, 1-14 pH, eliminating many styles of packing
  • In many applications, no need to remove old packing, just add a ring
  • Lasts 4 to 6 times longer than traditional pump packings

Worn Shafts and Sleeves Easily Sealed
Conforms to the geometry of the stuffing box and shaft.  Seals most worn sleeves.

Pump Sealing Technology

Why Traditional Packings Fail

How a Stuffing Box Should Look When Completely Packed Using Traditional Packings

Traditional packings are mostly fiber with added lubricants that can be squeezed, cooked or washed out, resulting in out-of position lantern rings, over-compressed packing and sleeve wear.

Slade Packed Centrifugal Pumps: Typical Stuffing Box VERSES Slade Packed Stuffing Box

Typical Stuffing Box:  A typical stuffing box requires leakage and/or flush-water to dissipate heat, creating costly housekeeping problems, loss of product and/or loss of flush-water. Additional rings cannot be added without affecting position of lantern ring
Pump Packing

Slade Packed Stuffing Box:  In most applications, a Slade packed stuffing box can be run without flush-water and/or with virtually no leakage.  In many applications, both No-Flush & No-Leak are possible!  Additional rings can be added as needed.

Pump Packing

Flush-Free & Virtual Leak-Free Service

slade packed stuffing box

Depending on design of equipment and speed of shaft, a permanent split bushing may be installed last (after 3300G Rings).  Please  contact us for a recommendation.

Seals Rotating Equipment

Whereas most pump packings are largely abrasive fibers with added lubricants that can be squeezed, washed or cooked out, Slade 3300G utilizes the self-lubricating qualities of the very best natural, exfoliated graphite.

Incorporating just enough temperature and chemical resistant ‘carbon fiber’ to make very high tensile strength yarns, Slade’s patented technology allows the braided packing rings to transfer frictional heat away from high speed shaft sleeves, eliminating the need, in most cases, for cooling water.

Since cooling or flushing is not typically required, there is no need for lantern rings.  This eliminates the concern of the lantern rings being adjusted out of position, flush water ports becoming plugged, or sleeve wear caused by the corrosive nature of highly oxygenated water on hardened sleeves.

Pump Applications

For Steam, Nuclear and Hydro-Electric Plants

  • Boiler Feed Water
  • Boiler Recirculation
  • Condensate Pumps
  • Service Water Pumps
  • River Water Intake
  • Heater Drain Pumps
  • Vacuum Pumps
  • Clinker Grinders
  • Fly-Ash Pumps
  • Lime Slurry pumps
  • Auxiliary Feed-Water
  • Fire Pumps
For Pulp and Paper Mills

  • Refiners
  • Pulpers
  • Separators
  • Deflakers
  • Stock Pumps
  • Coating Pumps
  • Vacuum Pumps
  • Agitators
  • Condensate Pumps
  • Boiler Feed Pumps
  • Boiler Recirculation Pumps
  • Stock Chests
  • Mixers
  • Steam Vessels
  • Liquor Pumps
  • Outlet Device

DSS Sealing System

Pump Packing

Replaces expensive Mechanical Seals at 25% of the cost. Split to install without dismantling the pump

An alternative to machining costly bushings is to utilize Slade’s DSS Sealing System.  No machining, no dismantling of the pump.  Achieve leak-free, flush-free service.  It comes fully unitized, ready to install, and we’ll inform you of the gland compression required. If you follow Slade’s installation instructions, you eliminate fear of over-tightening.

The SLADE DSS sealing system can achieve Mechanical Seal performance at packing costs. Contact Slade for information on the DSS bushings.

Installation

  • Check clearances and dimensions
  • Best to use no more than 5 rings in stuffing box (use DSS rings, Slade’s spacer bushings, to reduce rings)
  • Cut rings on the bias (45° angle), stagger joints
  • Compress each ring 25%-30%  (use packing compressors as needed)
  • Loosen gland to allow it to relax
  • Snug the gland bolts and start the pump
Pump Packing
