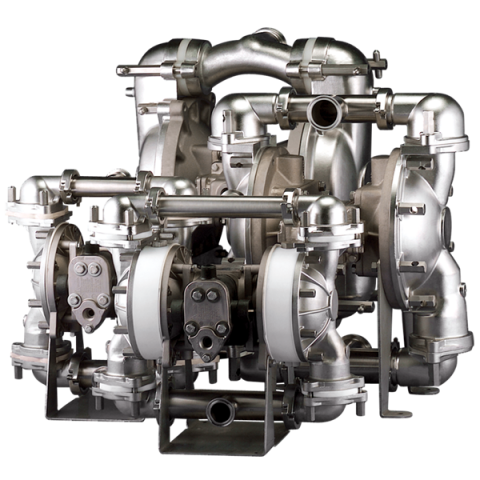

SSB2 Sandpiper AODD Premium FDA Metallic Pump

Designed to meet USDA (United States Department of Agriculture – Dairy Division) standards, these pumps are the ultimate in leak protection and clean pumping with the paired performance of AODD technology.  Whether in a clean-in-place or clean-out-of-place application, these pumps will exceed the need for reliability and cleanability.  Some of their most exceptional features include.

  • Leak Detection
    Pair with Electronic Leak Detection for full USDA compliance.
  • Materials Of Construction
    Electropolished 316 and 302/304 Stainless Steel components.
  • Porting Options
    Rotatable manifolds, and top or bottom discharge available.

Specifications

Port Size
2″ TRI-CLAMP
Capacity
0 to 125 gpm (473 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .25″ (6 mm)
Heads Up To
125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke
.36 gallons (1.4 liters)
Max Operating Pressure
125 psi (8.6 bar)

Click here for SSB2 Metallic Pump Data Sheet.
