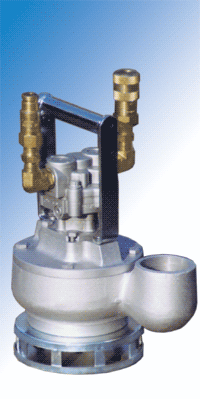

Submersible Aluminum Utility Pump Hydra-Tech S2TCAL-2

The S2TCAL-2 is a very portable and versatile all purpose utility pump. The two channel impeller handles solids and offers excellent overall performance. This pump is available with your choice of water or solids handling strainers.

  • Compact
  • All Purpose 2″ Aluminum Hydraulic Submersible Utility Pump
  • Aluminum Body
  • Also Available in Ductile Iron or Stainless Steel.
  • Recommended Power Units: HT6G, HT6D
  • Power Source: Any Open Center Hydraulic System

Features:

  • Can be bolted directly into a pipeline
  • Efficient Two Channel Impeller will pass 1 in (25 mm) semi-solids
  • Operates with our HT6 and HT7 power units or other hydraulic power sources capable of flows to 5 GPM
  • Rugged and Reliable gerotor motor
  • Safe Hydraulic Drive can be used where electric power is hazardous or impractical
  • Small Overall Size makes this pump very versatile
  • Variable Speed hydraulic drive
Aluminum Hydraulic Submersible Utility Pumps - Hydra-Tech S2TCAL-2
Weight: 7.7 kg, 17 lb
Height: 33 cm, 13 in
Width: 24 cm, 9-3/8 in
Discharge: 2 in
Inlet Size: 1-1/2 in
Solids Handling: 1 in, 25 mm
Hose Port Size: 3/8 in
Pump Body Material: Aluminum
Impeller Material: Ductile Iron
Shaft Material: Heat Treated Steel Alloy
Shaft Seal Material: Carbon/Ceramic (Std)
Elastomers: Buna-N (Standard)
Hydraulic Oil Viscosity: 214 to 320 SSU
Maximum Flow Rate: 5 gpm, 19 L/min
Maximum Operating Pressure (Interrupted): 172 bar, 2500 psi
Maximum Operating Pressure (Continuous): 136 bar, 2000 psi
POWER SOURCE: Any Open Center Hydraulic System
