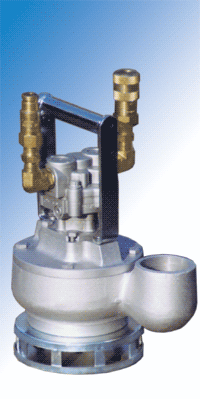

Submersible Stainless Steel Utility Pump Hydra-Tech S2TCSS-2

The S2TCSS-2 is a Very Portable and Versatile All Purpose Utility Pump. An Efficient Channel Impeller Handles Solids and Offers Excellent Overall Performance. The Stainless Steel Body offers Protection in Mildly Corrosive Environments.

Features:

  • Efficient Two Channel Impeller will pass 1″ (25mm) semi-solids
  • Rugged and Reliable Gerotor Motor
  • Stainless Steel Body
  • Variable Speed
  • Can Be Bolted Into a Pipeline or Staged
  • Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
  • Also Available in Ductile Iron or Aluminum.
  • Operates With Our Gas, Diesel or Electric Drive Hydraulic Power Units or any open center power source with output flows to 5 GPM.
  • Recommended Power Units: HT6G, HT6D
Submersible Stainless Steel Utility Pump Hydra-Tech S2TCSS-2
WEIGHT:                      25 lbs. (11 kg)
HEIGHT:                      13" (33 cm)
DIAMETER (@ widest point):   9 3/8" (24 cm)
DISCHARGE:                   2" NPT(F)
INLET FLANGE:                1 1/2" 125#
SOLIDS HANDLING:             1" (25mm)
HOSE PORTS:                  3/8" SAE 'O' Ring
PUMP BODY:                   Stainless Steel
IMPELLER:                    Stainless Steel
SHAFT:                       Heat Treated Steel Alloy
SHAFT SEAL:                  Carbon/Ceramic (Std)
ELASTOMERS:                  Buna N (Std)
HYDRAULIC OIL:               214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:                  Max. 5 GPM (19 LPM)
OPERATING PRESSURE:          Cont. Max: 2000PSI (136 Bar)
                             Int. Max: 2500 PSI (172 Bar)
POWER SOURCE:                Any Open Center Hydraulic System

Click here for detailed specifications.
