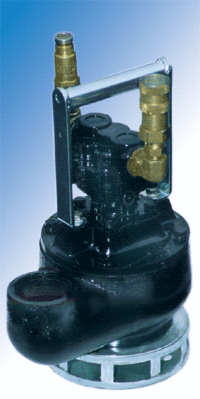

Submersible Utility Pump Hydra-Tech S2TC-2

The S2TC-2 is a very portable and versatile all purpose utility pump. The two channel impeller handles solids and offers excellent overall performance. This pump is available with your choice of water or solids handling strainers.

  • Efficient Two Channel Impeller will pass 1″ (25mm) semi-solids
  • Rugged and Reliable Gerotor Motor
  • Variable Speed
  • Can Be Bolted Into a Pipeline or Staged
  • Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
  • Operates With Our Gas, Diesel or Electric Drive Hydraulic Power Units or any open center power source with output flows to 5 GPM.
  • Available in standard Ductile Iron or Aluminum body and optional Stainless Steel body.
  • Also Available in Aluminum or Stainless Steel.
  • Recommended Power Units: HT6G, HT6D
Hydraulic Submersible Utility Pump - Hydra-Tech S2TC-2
WEIGHT:                     25 lbs. (11 kg)
HEIGHT:                     13" (33 cm)
DIAMETER (@ widest point):  9 3/8" (24 cm)
DISCHARGE:                  2" NPT(F)
INLET FLANGE:               1 1/2" 125#
SOLIDS HANDLING:            1" (25mm)
HOSE PORTS:                 3/8" SAE 'O' Ring
PUMP BODY:                  Ductile Iron
IMPELLER:                   Ductile Iron
SHAFT:                      Heat Treated Steel Alloy
SHAFT SEAL:                 Carbon/Ceramic (Std)
ELASTOMERS:                 Buna N (Std)
HYDRAULIC OIL:              214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:                 Max. 5 GPM (19 LPM)
OPERATING PRESSURE:         Cont. Max: 2000PSI (136 Bar)
                            Int. Max: 2500 PSI (172 Bar)
POWER SOURCE:               Any Open Center Hydraulic System
