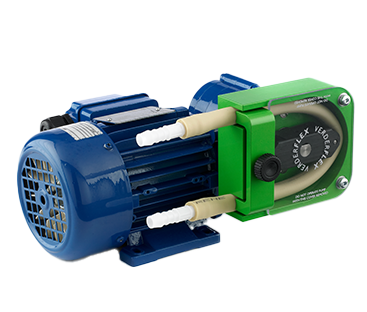

Verderflex Rapide R3

The Verderflex Rapide R3 are an Industrial range of tube pumps that provide a balanced selection of simple to operate peristaltic pumps.

The Rapide is a compact peristaltic tube pump which can be installed as a unit in itself or integrated into a system such as a printing press or packaged turnkey skid. Suitable for rugged environments, the range uses an IP55 rated gear motor and is assembled in a heavy duty aluminium housing. The tube is ‘thick-walled’ for the safe and reliable handling of abrasive, corrosive and viscous fluids such as chemical solutions, fine slurry, inks, dyes, additives and other dosing fluids.

Property
Max. flow 230 l/h
Max. discharge pressure 2 bar
Max. temperature 85 °C
Max. tube 9.6 mm
Tube Wall Thickness 3.2 mm
Certificates FDA, USP
Standard Speeds 68,137&196 rpm
Standard Tubes Verderprene, Silicone
