Verderflex Rapide R3DC Pumps | Verder Pumps

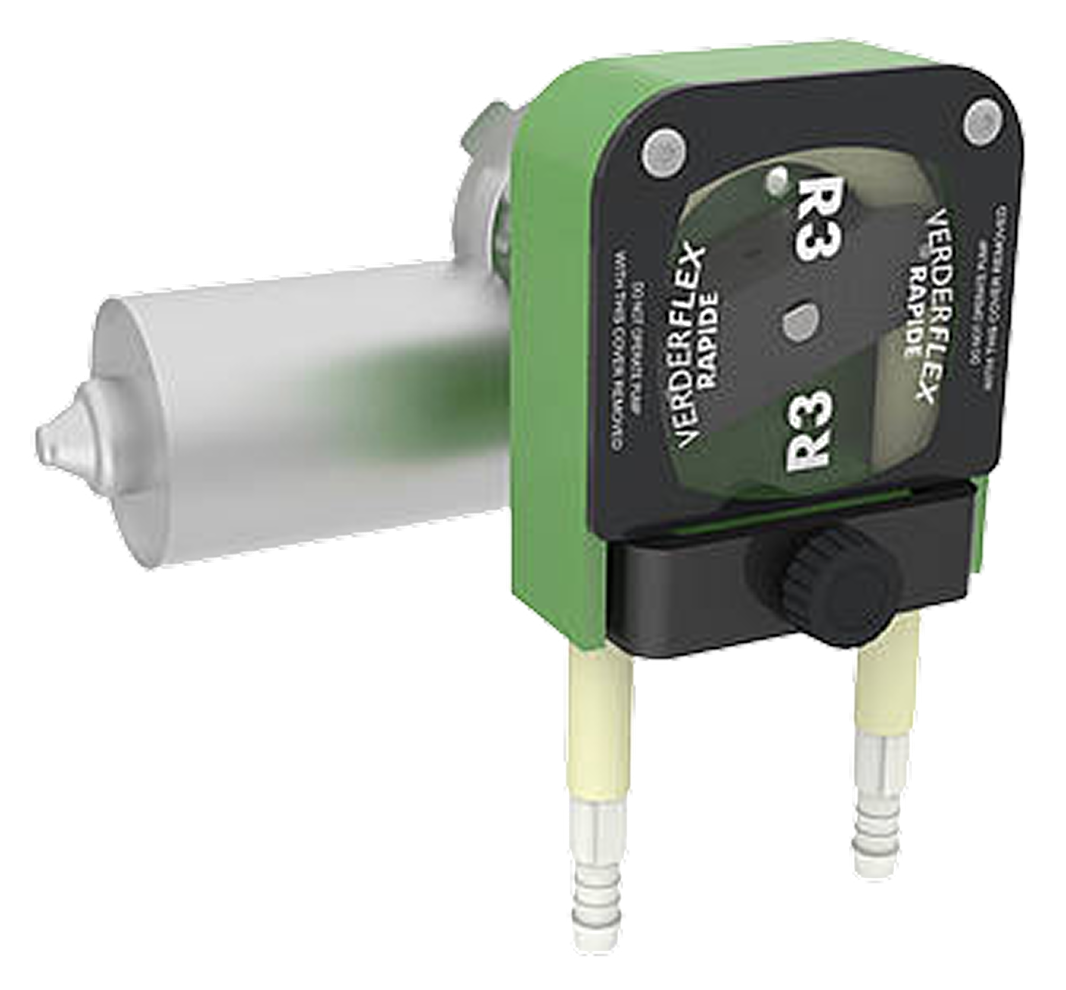

Verderflex Rapide R3DC
The Rapide is a compact peristaltic tube pump which can be installed as a unit in itself or integrated into a system such as a printing press or packaged turnkey skid. Suitable for rugged environments, the range uses an IP55 rated gear motor and is assembled in a heavy duty aluminium housing. The tube is ‘thick-walled’ for the safe and reliable handling of abrasive, corrosive and viscous fluids such as chemical solutions, fine slurry, inks, dyes, additives and other dosing fluids.
| Property | |
|---|---|
| Max. flow | 3.4 l/min |
| Max. discharge pressure | 2 bar |
| Max. temperature | 85 °C |
| Max. tube | 9.6 mm |
| Tube Wall Thickness | 3.2 mm |
| Tubing material | Verderprene or Silicone |
| Options | – |
| Rotor | Aluminium alloy |
