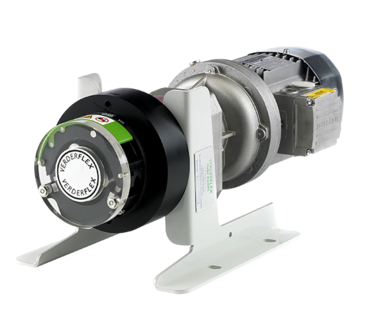

Verderflex Rapide R3S Pumps | Verder Pumps
The Verderflex Rapide R3S are an Industrial range of tube pumps that provide a balanced selection of simple to operate peristaltic pumps.
The Rapide is a compact peristaltic tube pump which can be installed as a unit in itself or integrated into a system such as a printing press or packaged turnkey skid. Suitable for rugged environments, the range uses an IP55 rated gear motor and is assembled in a heavy duty aluminium housing. The tube is ‘thick-walled’ for the safe and reliable handling of abrasive, corrosive and viscous fluids such as chemical solutions, fine slurry, inks, dyes, additives and other dosing fluids.
Property | |
---|---|
Max. flow | 189 l/h |
Max. discharge pressure | 2 bar |
Max. temperature | 85 °C |
Max. tube | 9.6 mm |
Tube Wall Thickness | 2.4 mm |
Certificates | FDA, USP |
Standard Speeds | 60,113,151,220 rpm |
Standard Tubes | Verderprene, Silicone |
