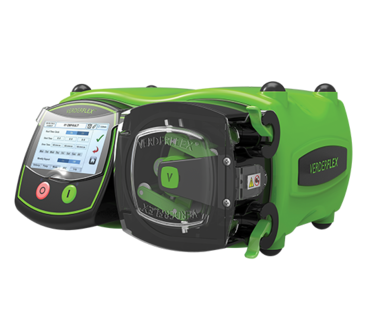

Verderflex Vantage 5000 MODBUS Pumps | Verder Pumps
The Verderflex Vantage 5000 MODBUS is the next generation in networkable, remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface, real time event clock and a USB data backup port. Ideal for digitally controlled pump networks operating under the MODBUS(R) RTU protocol and providing 7 local control volt free inputs & 4 local volt free status outputs. The pump works with loose tubing at up to 2 bar or with dedicated Quick Release or Mini TriClamp tube assemblies at all pressures.
| Property | |
|---|---|
| Protocol | MODBUS RTU |
| Max. flow | 6600 ml/min |
| Max. discharge pressure | 7 bar |
| Turn down ratio | 4096:1 |
| Protection Class | IP66, NEMA 4X |
| Display & Programming | Intuitive 110mm Full Colour Touch Screen LCD |
| Backup | USB v2 dataport |
| Analogue Inputs & Outputs | 0-10V, 4-20mA, Frequency |
| Control Inputs | 7 |
| Status Outputs | 4 |
| Tube Failure Detection | Standard |
| Speed | 400 rpm |
| Power Supply | 85-265V 50/60Hz 1 Phase |
| Certificates | FDA |
| Max. particle size | 2,5 mm |
