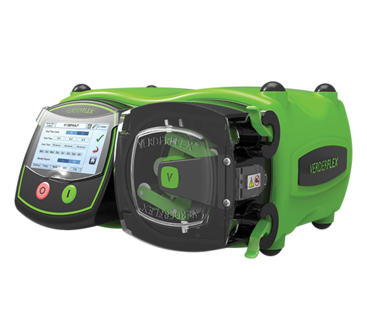

Verderflex Vantage 5000 Remote Pumps | Verder Pumps
The Verderflex Vantage 5000 Remote is the next generation in remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface, real time event clock and a USB data backup port. Control signal inputs & outputs include 0-10V, 4 to 20mA & proportional flow modes, 7 control volt free inputs & 4 volt free status outputs. The pump works with loose tubing at up to 2 bar or with dedicated Quick Release or Mini TriClamp tube assemblies at all pressures.
| Property | |
|---|---|
| Protocol | – |
| Max. flow | 6600 ml/min |
| Max. discharge pressure | 7 bar |
| Turn down ratio | 4096:1 |
| Protection Class | IP66, NEMA 4X |
| Display & Programming | 110mm FC Touch Screen |
| Backup | USB v2 dataport |
| Analogue Inputs & Outputs | 0-10V, 4-20mA, Frequency |
| Control Inputs | 7 |
| Status Outputs | 4 |
| Menu Access | 5 Password protected accounts |
| Tube Failure Detection | Standard |
| Speed | 400 rpm |
| Power Supply | 85-265V 50/60Hz 1 Phase |
| Certificates | FDA |
| Max. particle size | 2,5 mm |
