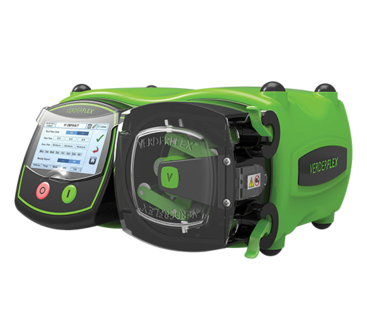

Verderflex Vantage 5000 SCADA HV Pumps | Verder Pumps
The Verderflex Vantage 5000 SCADA HV is the next generation in 115V AC opto-isolated remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface, real time event clock and a USB data backup port. Ideal for SCADA systems, control signal inputs & outputs include 0-10V, 4 to 20mA & proportional flow modes, 7 control volt free inputs & 4 volt free status outputs. The pump works with loose tubing at up to 2 bar or with dedicated Quick Release or Mini TriClamp tube assemblies at all pressures.
| Property | |
|---|---|
| Protection | Opto isolated 115V AC |
| Max. flow | 6600 ml/min |
| Max. discharge pressure | 7 bar |
| Turn down ratio | 4096:1 |
| Protection Class | IP66, NEMA 4X |
| Display & Programming | Intuitive 110mm Full Colour Touch Screen LCD |
| Backup | USB v2 dataport |
| Analogue Inputs & Outputs | 0-10V, 4-20mA, Frequency |
| Control Inputs | 7 |
| Status Outputs | 4 |
| Tube Failure Detection | Standard |
| Speed | 400 rpm |
| Power Supply | 85-265V 50/60Hz 1 Phase |
| Certificates | FDA |
| Max. particle size | 2,5 mm |
